# Debugging setup
import debugpy
try:
    # 5678 is the default attach port in the VS Code debug configurations. Unless a host and port are specified, host defaults to 127.0.0.1
    debugpy.listen(("localhost", 9501))
    print("Waiting for debugger attach")
    debugpy.wait_for_client()
except Exception as e:
    pass

import torch

from transformers import Qwen3VLForConditionalGeneration, AutoProcessor

# default: Load the model on the available device(s)
model = Qwen3VLForConditionalGeneration.from_pretrained(
    "model_dir", dtype="auto", device_map="cpu"
)
device = "cuda" if torch.cuda.is_available() else "cpu"
# We recommend enabling flash_attention_2 for better acceleration and memory saving, especially in multi-image and video scenarios.
# model = Qwen3VLForConditionalGeneration.from_pretrained(
#     "Qwen/Qwen3-VL-8B-Thinking",
#     dtype=torch.bfloat16,
#     attn_implementation="flash_attention_2",
#     device_map="auto",
# )s
processor = AutoProcessor.from_pretrained("model_dir")

# messages = [
#     {
#         "role": "user",
#         "content": [
#             {
#                 "type": "image",
#                 "image": "https://qianwen-res.oss-cn-beijing.aliyuncs.com/Qwen-VL/assets/demo.jpeg",
#             },
#             {"type": "text", "text": "Describe this image."},
#         ],
#     }
# ]
messages = [
    {
        "role": "user",
        "content": [
            {
                "type": "video",
                "video": "https://qianwen-res.oss-cn-beijing.aliyuncs.com/Qwen2-VL/space_woaudio.mp4"
            },
            {
                "type": "text",
                "text": "How long is this video?"
            }
        ]
    }
]
# Preparation for inference
inputs = processor.apply_chat_template(
    messages,
    tokenize=True,
    add_generation_prompt=True,
    return_dict=True,
    return_tensors="pt"
)
inputs = inputs.to(device)

# Inference: Generation of the output
generated_ids = model.generate(**inputs, max_new_tokens=128)
generated_ids_trimmed = [
    out_ids[len(in_ids) :] for in_ids, out_ids in zip(inputs.input_ids, generated_ids)
]
output_text = processor.batch_decode(
    generated_ids_trimmed, skip_special_tokens=True, clean_up_tokenization_spaces=False
)
print(output_text)

messages = [
    {
        "role": "user",
        "content": [
            {
                "type": "image",
                "image": "https://qianwen-res.oss-cn-beijing.aliyuncs.com/Qwen-VL/assets/demo.jpeg",
            },
            {"type": "text", "text": "Describe this image."},
        ],
    }
]

<|vision_start|><|image_pad|><|vision_end|>

image_inputs = self.image_processor(images=images, **output_kwargs["images_kwargs"])

if images is not None:
    images = self._prepare_image_like_inputs(
        images=images, do_convert_rgb=do_convert_rgb, input_data_format=input_data_format, device=device
    )# 读取并转成tensor
    batch_feature = self._preprocess(images, **kwargs)# 预处理，kwargs包含了所有定义的预处理参数，包括patch size。

 num_image_tokens = image_grid_thw[index].prod() // merge_length
 text[i] = text[i].replace(self.image_token, "<|placeholder|>" * num_image_tokens, 1)

outputs = self.model(
    input_ids=input_ids,
    pixel_values=pixel_values,
    pixel_values_videos=pixel_values_videos,
    image_grid_thw=image_grid_thw,
    video_grid_thw=video_grid_thw,
    position_ids=position_ids,
    attention_mask=attention_mask,
    past_key_values=past_key_values,
    inputs_embeds=inputs_embeds,
    cache_position=cache_position,
    **kwargs,
)

if inputs_embeds is None:
    inputs_embeds = self.get_input_embeddings()(input_ids)

if pixel_values is not None:
    image_embeds, deepstack_image_embeds = self.get_image_features(pixel_values, image_grid_thw)
    image_embeds = torch.cat(image_embeds, dim=0).to(inputs_embeds.device, inputs_embeds.dtype)
    image_mask, _ = self.get_placeholder_mask(
        input_ids, inputs_embeds=inputs_embeds, image_features=image_embeds
    )
    inputs_embeds = inputs_embeds.masked_scatter(image_mask, image_embeds)

def get_image_features(self, pixel_values: torch.FloatTensor, image_grid_thw: Optional[torch.LongTensor] = None):
    ...
    image_embeds, deepstack_image_embeds = self.visual(pixel_values, grid_thw=image_grid_thw)
    split_sizes = (image_grid_thw.prod(-1) // self.visual.spatial_merge_size**2).tolist()
    image_embeds = torch.split(image_embeds, split_sizes)
    return image_embeds, deepstack_image_embeds

def forward(self, hidden_states: torch.Tensor, grid_thw: torch.Tensor, **kwargs) -> torch.Tensor:
        # part 1
        hidden_states = self.patch_embed(hidden_states)
		# part 2
        pos_embeds = self.fast_pos_embed_interpolate(grid_thw)
        hidden_states = hidden_states + pos_embeds

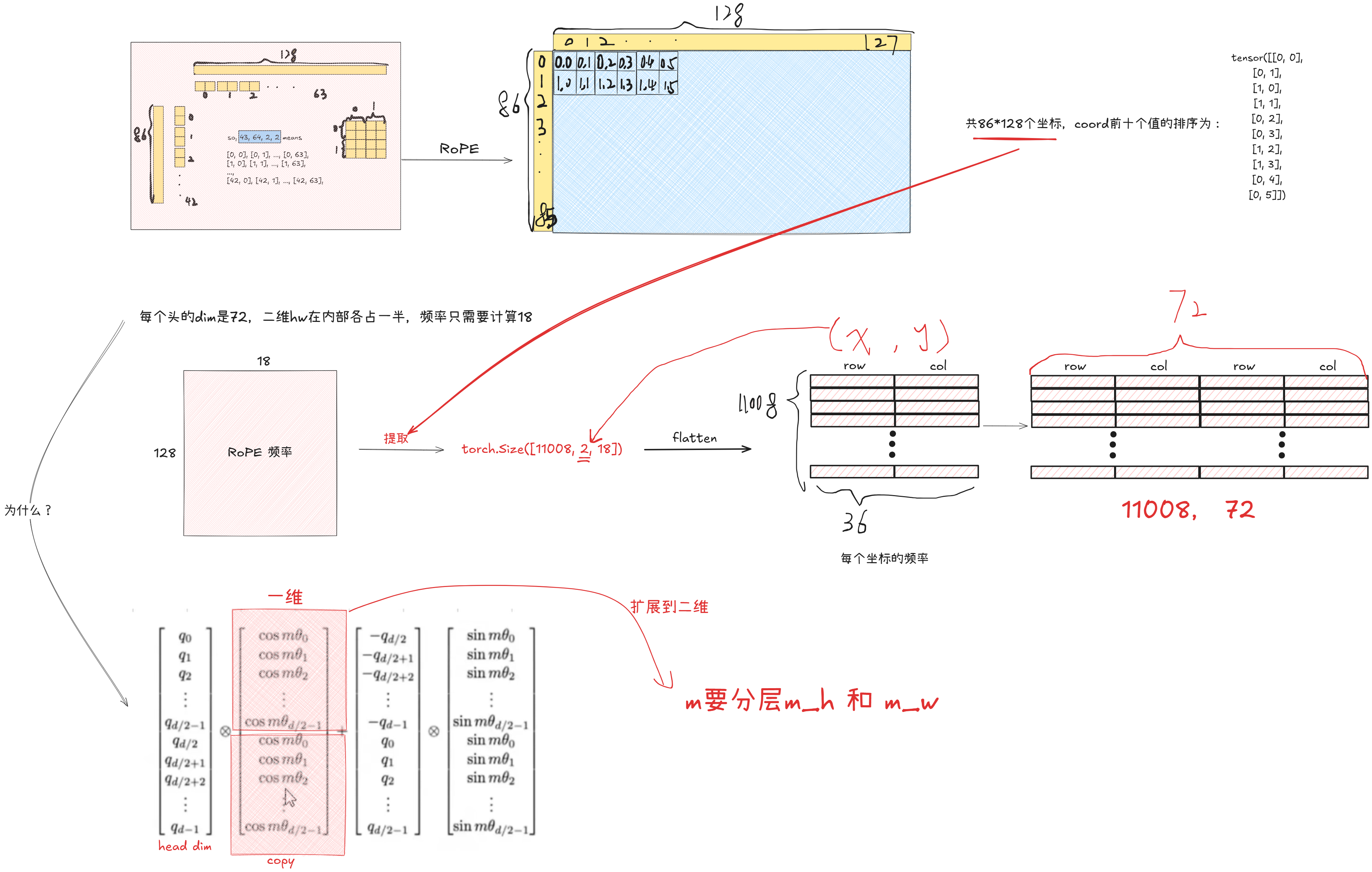

        rotary_pos_emb = self.rot_pos_emb(grid_thw)

        seq_len, _ = hidden_states.size()
        hidden_states = hidden_states.reshape(seq_len, -1)
        rotary_pos_emb = rotary_pos_emb.reshape(seq_len, -1)
        emb = torch.cat((rotary_pos_emb, rotary_pos_emb), dim=-1)
        position_embeddings = (emb.cos(), emb.sin())

        cu_seqlens = torch.repeat_interleave(grid_thw[:, 1] * grid_thw[:, 2], grid_thw[:, 0]).cumsum(
            dim=0,
            # Select dtype based on the following factors:
            #  - FA2 requires that cu_seqlens_q must have dtype int32
            #  - torch.onnx.export requires that cu_seqlens_q must have same dtype as grid_thw
            # See https://github.com/huggingface/transformers/pull/34852 for more information
            dtype=grid_thw.dtype if torch.jit.is_tracing() else torch.int32,
        )
        cu_seqlens = F.pad(cu_seqlens, (1, 0), value=0)

        # part 3
        deepstack_feature_lists = []
        for layer_num, blk in enumerate(self.blocks):
            hidden_states = blk(
                hidden_states,
                cu_seqlens=cu_seqlens,
                position_embeddings=position_embeddings,
                **kwargs,
            )
            if layer_num in self.deepstack_visual_indexes:
                deepstack_feature = self.deepstack_merger_list[self.deepstack_visual_indexes.index(layer_num)](
                    hidden_states
                )
                deepstack_feature_lists.append(deepstack_feature)
		# part 4
        hidden_states = self.merger(hidden_states)

        return hidden_states, deepstack_feature_lists

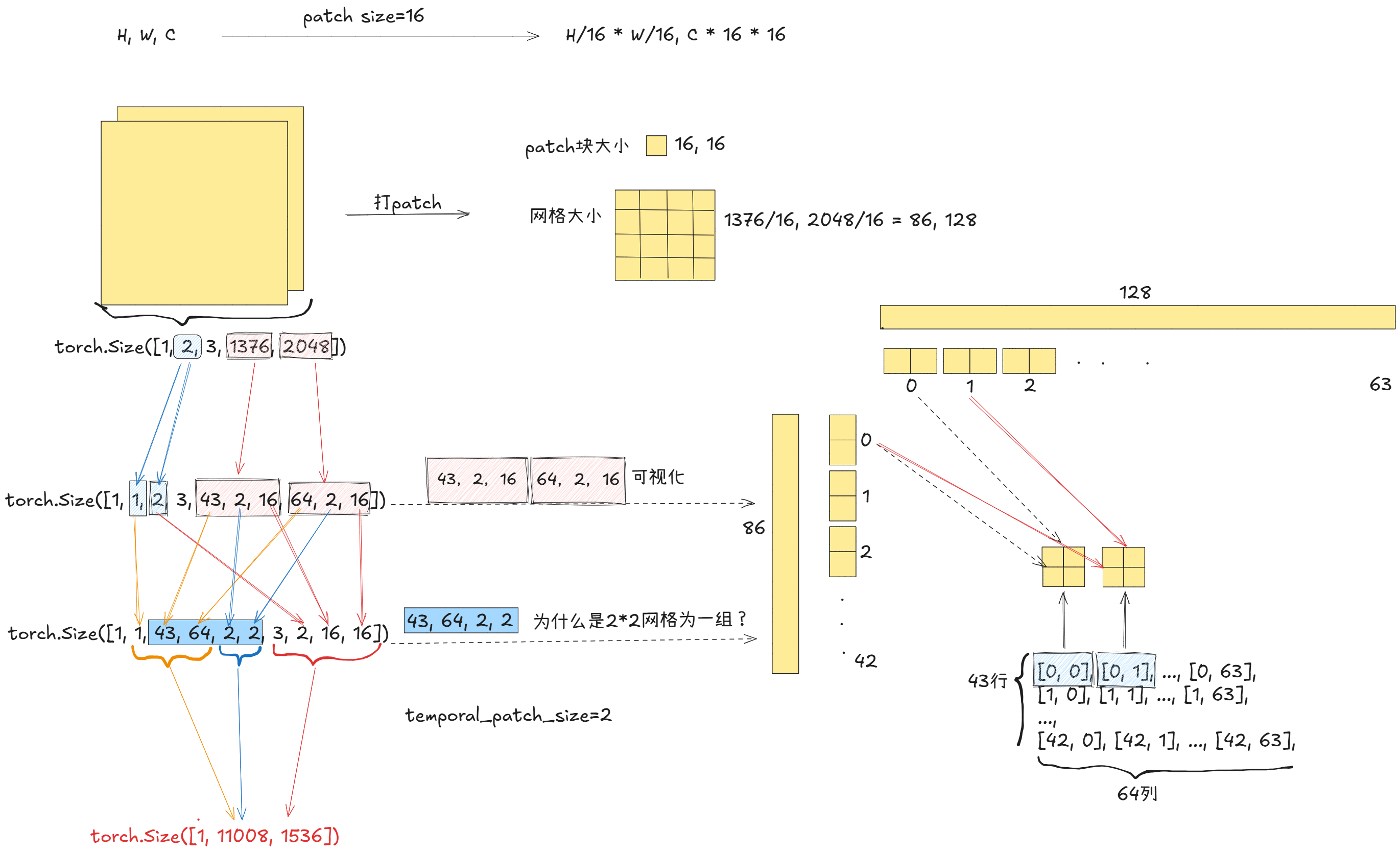

nn.Conv3d(3, 1152, kernel_size=(2,16,16), stride=(2,16,16), bias=True)

if layer_num in self.deepstack_visual_indexes:
    deepstack_feature = self.deepstack_merger_list[self.deepstack_visual_indexes.index(layer_num)](
        hidden_states
    )
    deepstack_feature_lists.append(deepstack_feature)

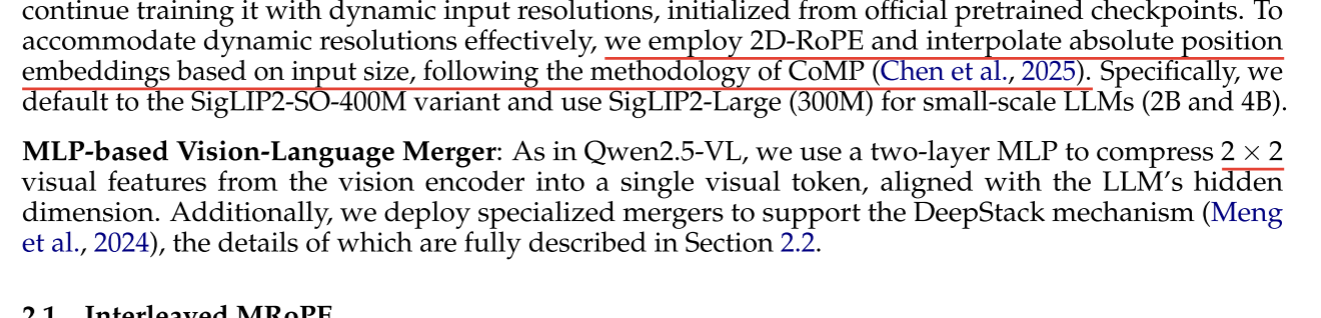

路径：merger class
class Qwen3VLVisionPatchMerger(nn.Module):
    def __init__(self, config: Qwen3VLVisionConfig, use_postshuffle_norm=False) -> None:
        super().__init__()
        self.hidden_size = config.hidden_size * (config.spatial_merge_size**2)
        self.use_postshuffle_norm = use_postshuffle_norm
        self.norm = nn.LayerNorm(self.hidden_size if use_postshuffle_norm else config.hidden_size, eps=1e-6)
        self.linear_fc1 = nn.Linear(self.hidden_size, self.hidden_size)
        self.act_fn = nn.GELU()
        self.linear_fc2 = nn.Linear(self.hidden_size, config.out_hidden_size)

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        x = self.norm(x.view(-1, self.hidden_size) if self.use_postshuffle_norm else x).view(-1, self.hidden_size)
        x = self.linear_fc2(self.act_fn(self.linear_fc1(x)))
        return x

inputs_embeds = inputs_embeds.masked_scatter(image_mask, image_embeds)

outputs = self.language_model(
    input_ids=None,
    position_ids=position_ids,
    attention_mask=attention_mask,
    past_key_values=past_key_values,
    inputs_embeds=inputs_embeds,
    cache_position=cache_position,
    visual_pos_masks=visual_pos_masks,
    deepstack_visual_embeds=deepstack_visual_embeds,
    **kwargs,
)

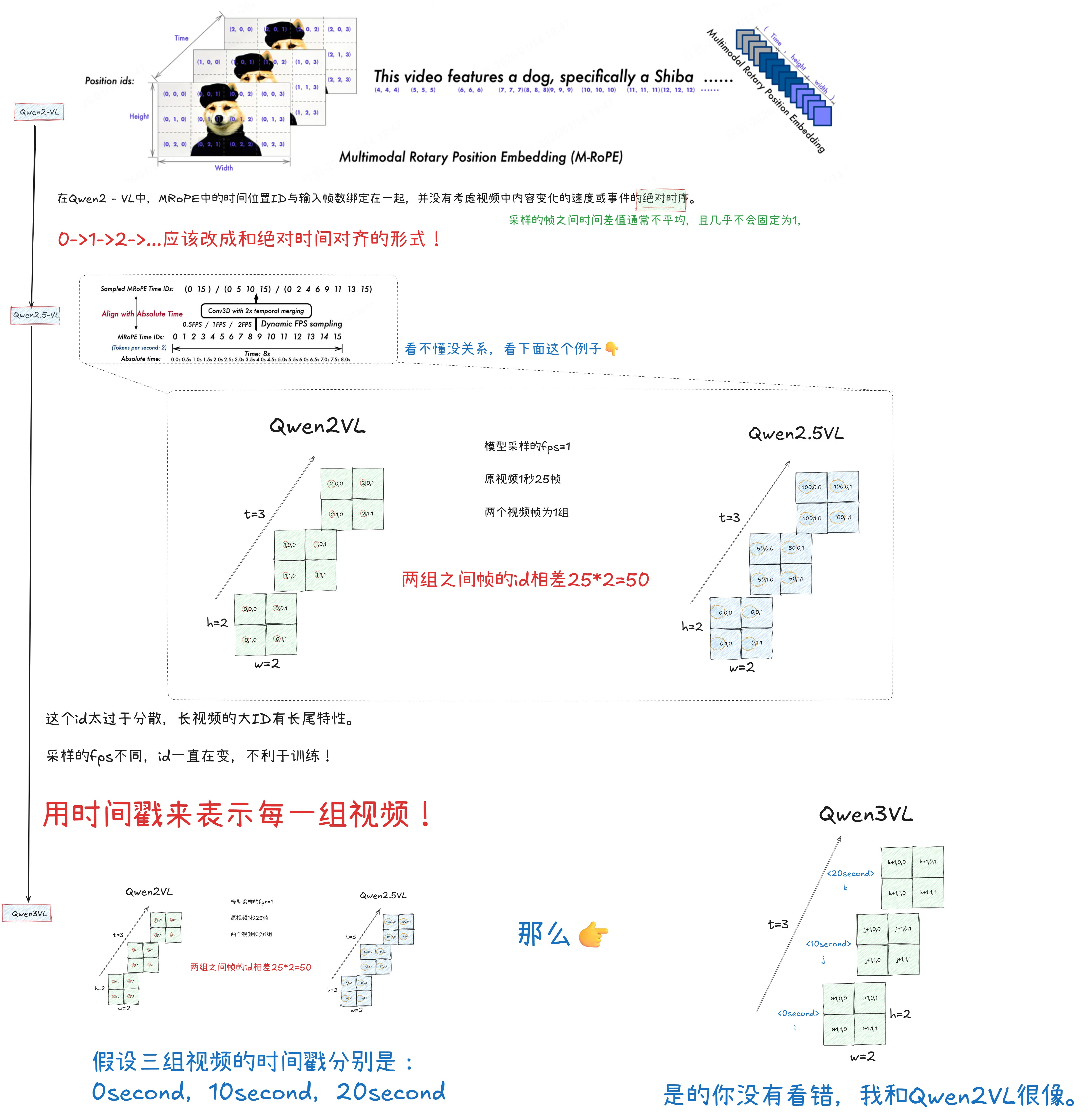

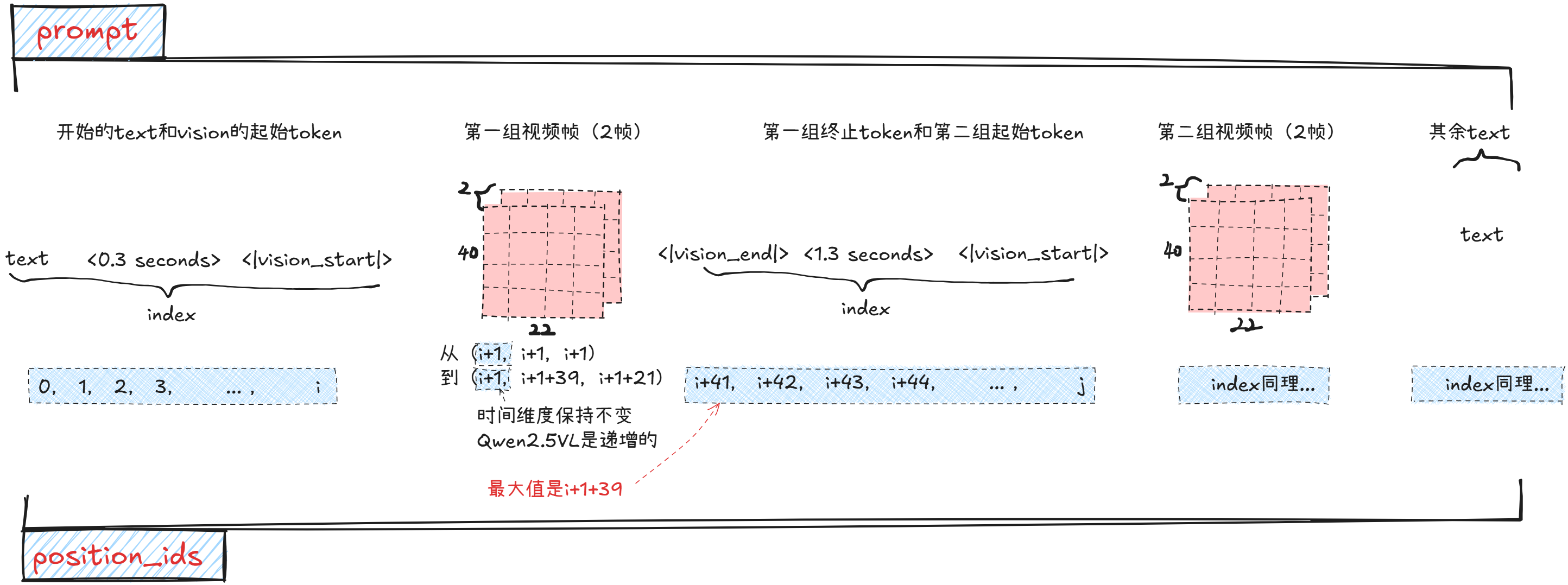

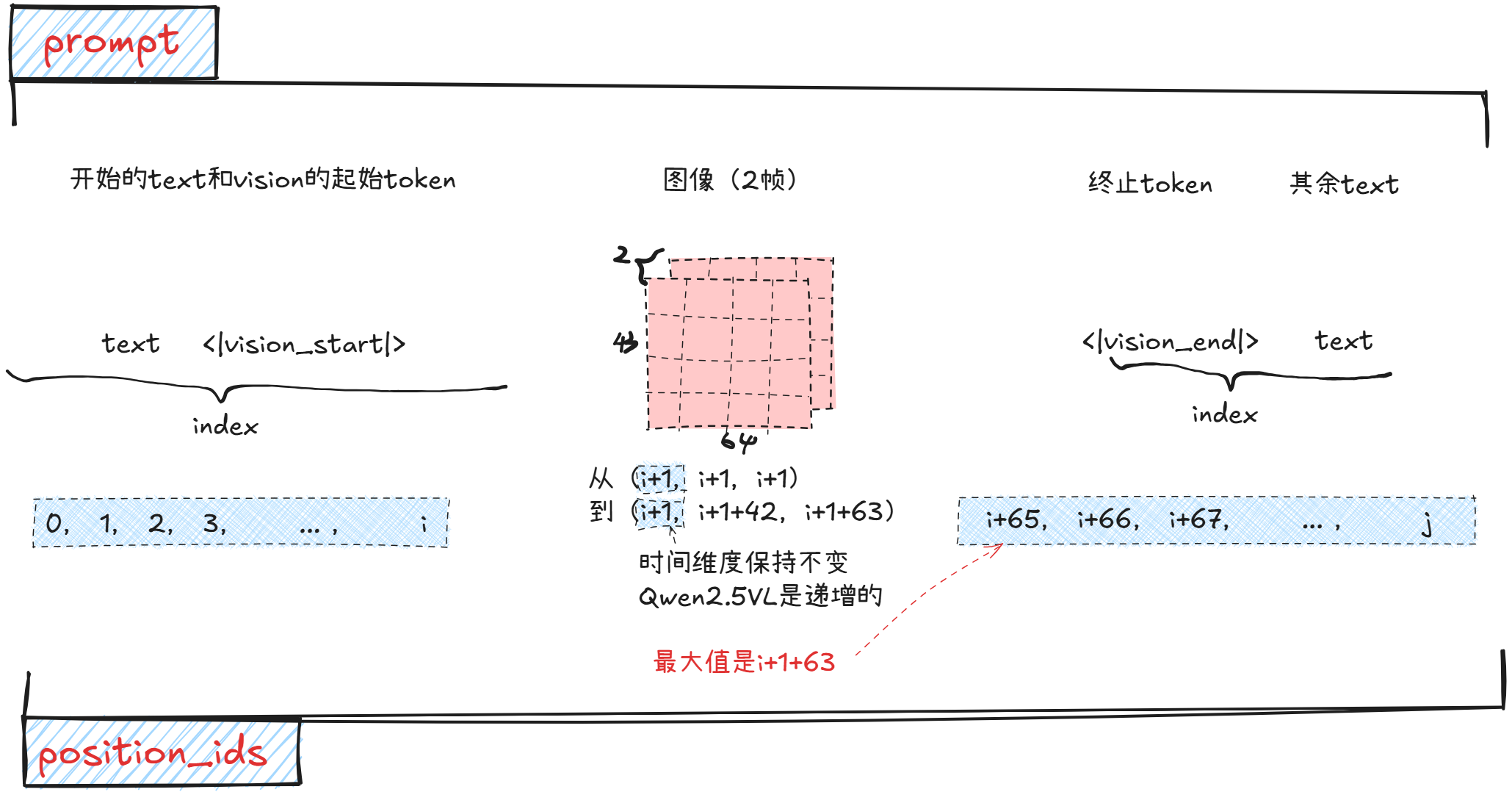

position_ids, rope_deltas = self.get_rope_index(
        input_ids,
        image_grid_thw,
        video_grid_thw,
        attention_mask=attention_mask_tensor,
 )
# 最终得到torch.Size([3, 1, 2768]),取position_ids[:,0]就得到第一个位置的idx（t,h,w）.

position_embeddings = self.rotary_emb(inputs_embeds, position_ids)

def forward(self, x, position_ids):
        # In contrast to other models, Qwen3VL has different position ids for the grids
        # So we expand the inv_freq to shape (3, ...)
        if position_ids.ndim == 2:
            position_ids = position_ids[None, ...].expand(3, position_ids.shape[0], -1)
        inv_freq_expanded = self.inv_freq[None, None, :, None].float().expand(3, position_ids.shape[1], -1, 1)# torch.Size([3, 1, 64, 1])
        position_ids_expanded = position_ids[:, :, None, :].float()  # shape (3, bs, 1, positions)

        device_type = x.device.type if isinstance(x.device.type, str) and x.device.type != "mps" else "cpu"
        with torch.autocast(device_type=device_type, enabled=False):  # Force float32
            freqs = (inv_freq_expanded.float() @ position_ids_expanded.float()).transpose(2, 3)

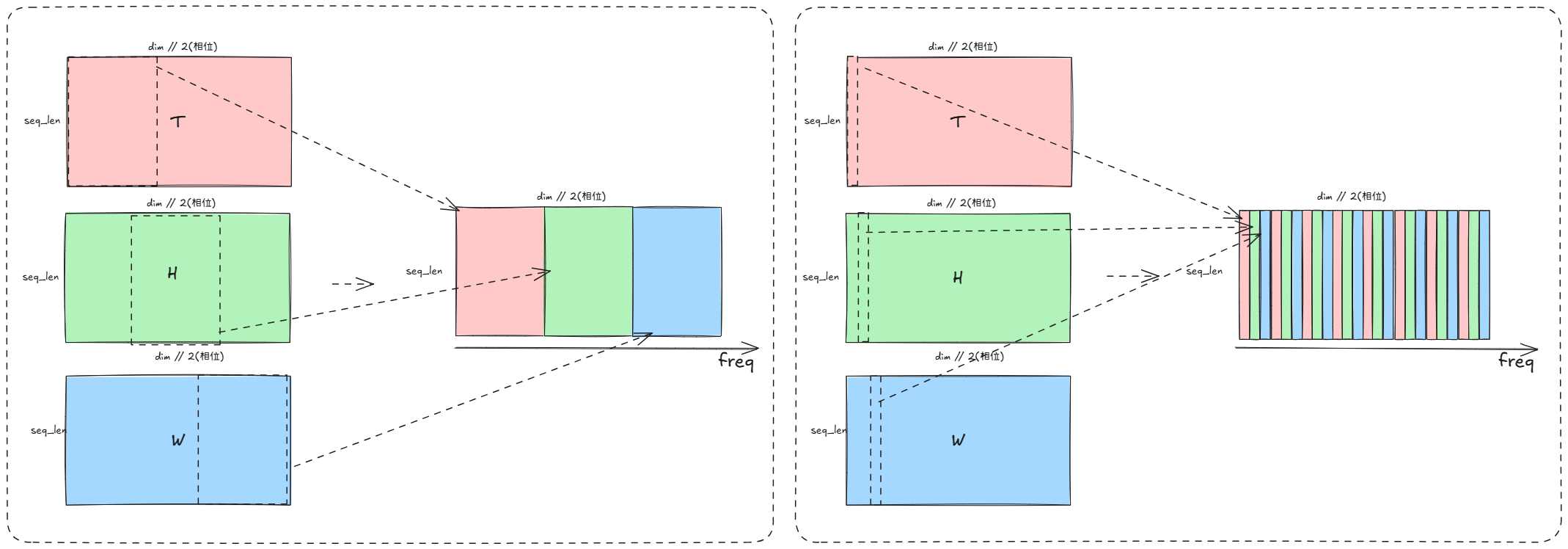

            freqs = self.apply_interleaved_mrope(freqs, self.mrope_section)
            emb = torch.cat((freqs, freqs), dim=-1)
            cos = emb.cos() * self.attention_scaling
            sin = emb.sin() * self.attention_scaling

        return cos.to(dtype=x.dtype), sin.to(dtype=x.dtype)

for layer_idx, decoder_layer in enumerate(self.layers):
    layer_outputs = decoder_layer(
        hidden_states,
        attention_mask=attention_mask,
        position_ids=text_position_ids,
        past_key_values=past_key_values,
        cache_position=cache_position,
        position_embeddings=position_embeddings,
        **kwargs,
    )
    hidden_states = layer_outputs

    # add visual features to the hidden states of first several layers
    if deepstack_visual_embeds is not None and layer_idx in range(len(deepstack_visual_embeds)):
        hidden_states = self._deepstack_process(
            hidden_states,
            visual_pos_masks,
            deepstack_visual_embeds[layer_idx],
        )

hidden_states = self.norm(hidden_states)

return BaseModelOutputWithPast(
    last_hidden_state=hidden_states,
    past_key_values=past_key_values,
)

    路径：接着上面textmodel
    def _deepstack_process(
        self, hidden_states: torch.Tensor, visual_pos_masks: torch.Tensor, visual_embeds: torch.Tensor
    ):
        visual_pos_masks = visual_pos_masks.to(hidden_states.device)
        visual_embeds = visual_embeds.to(hidden_states.device, hidden_states.dtype)
        local_this = hidden_states[visual_pos_masks, :].clone() + visual_embeds
        hidden_states[visual_pos_masks, :] = local_this
        return hidden_states

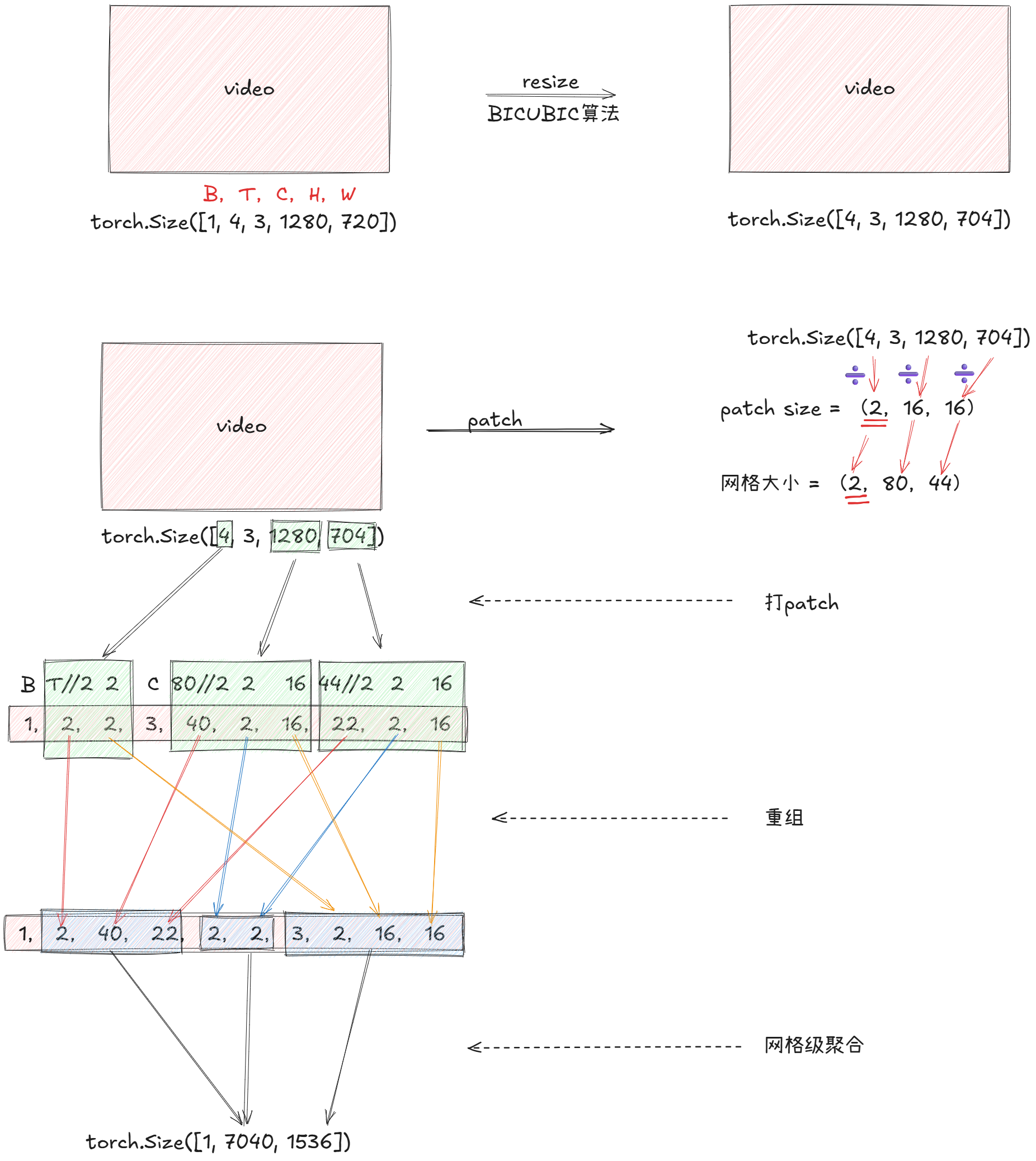

videos_inputs = self.video_processor(videos=videos, **output_kwargs["videos_kwargs"])

preprocessed_videos = self._preprocess(videos=videos, **kwargs)

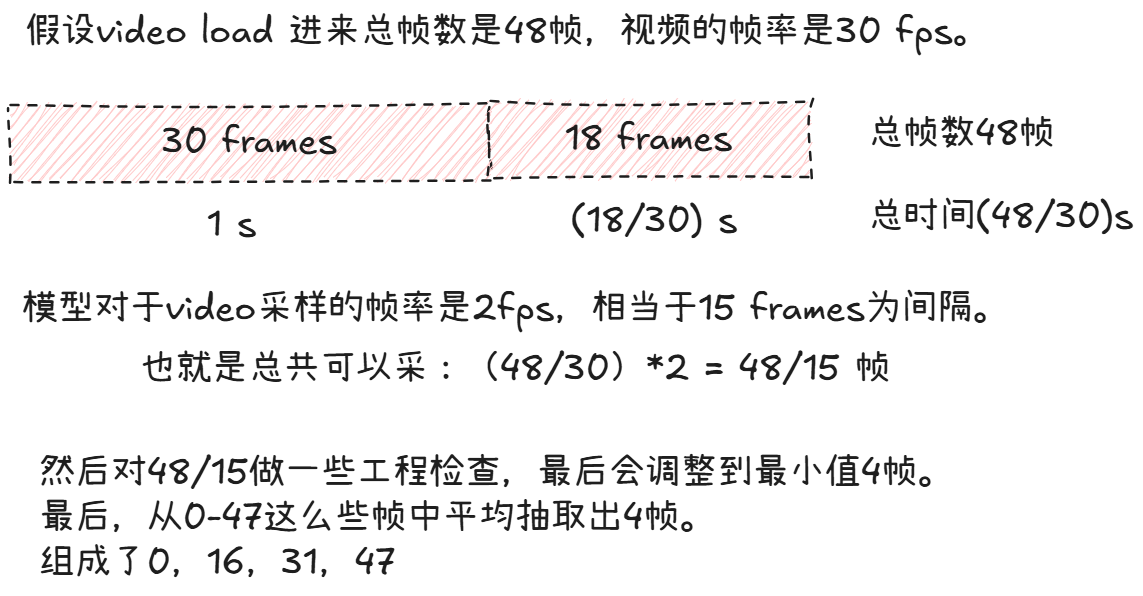

# if timestamps are not provided, calculate them
curr_timestamp = self._calculate_timestamps(
    metadata.frames_indices,
    metadata.fps,
    self.video_processor.merge_size,
)

video_placeholder = ""
frame_seqlen = video_grid_thw[index][1:].prod() // merge_length
for frame_idx in range(video_grid_thw[index][0]):
    curr_time = curr_timestamp[frame_idx]
    video_placeholder += f"<{curr_time:.1f} seconds>"
    video_placeholder += (
        self.vision_start_token + "<|placeholder|>" * frame_seqlen + self.vision_end_token
    )

 def get_video_features(
        self, pixel_values_videos: torch.FloatTensor, video_grid_thw: Optional[torch.LongTensor] = None
    ):
    return self.get_image_features(pixel_values_videos, video_grid_thw)
